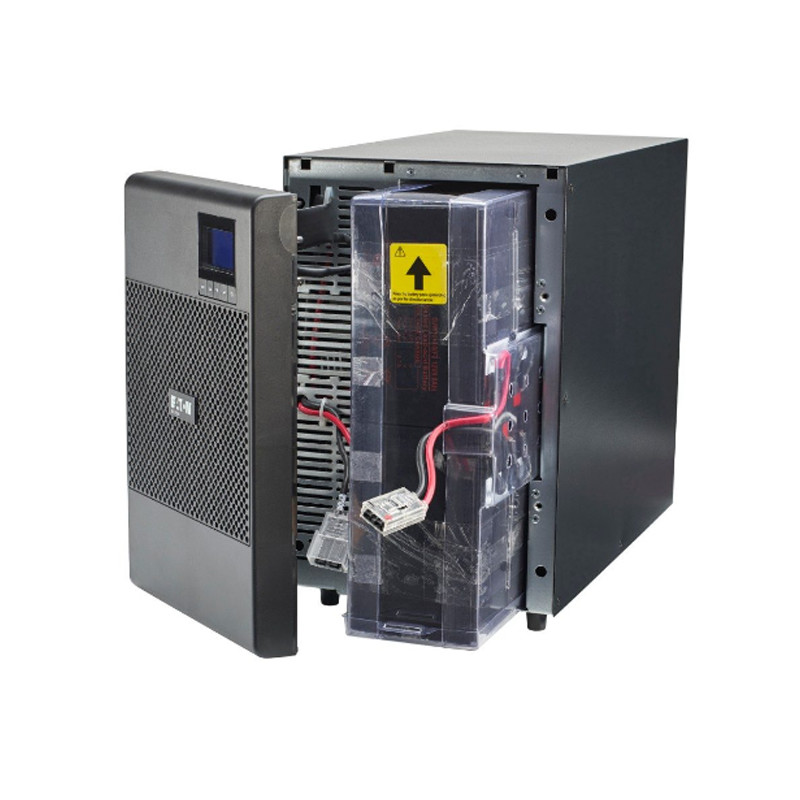

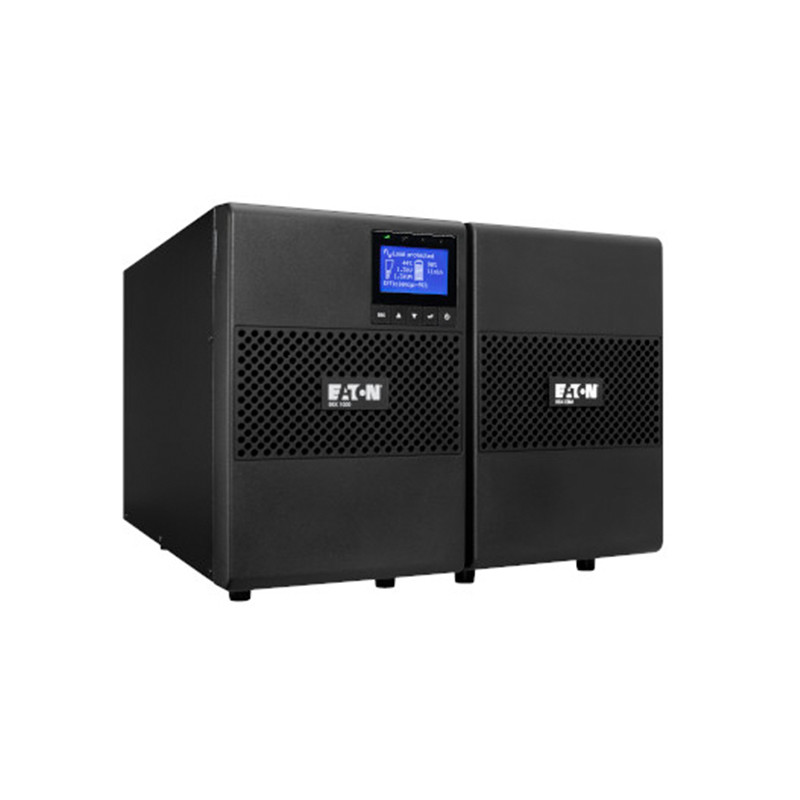

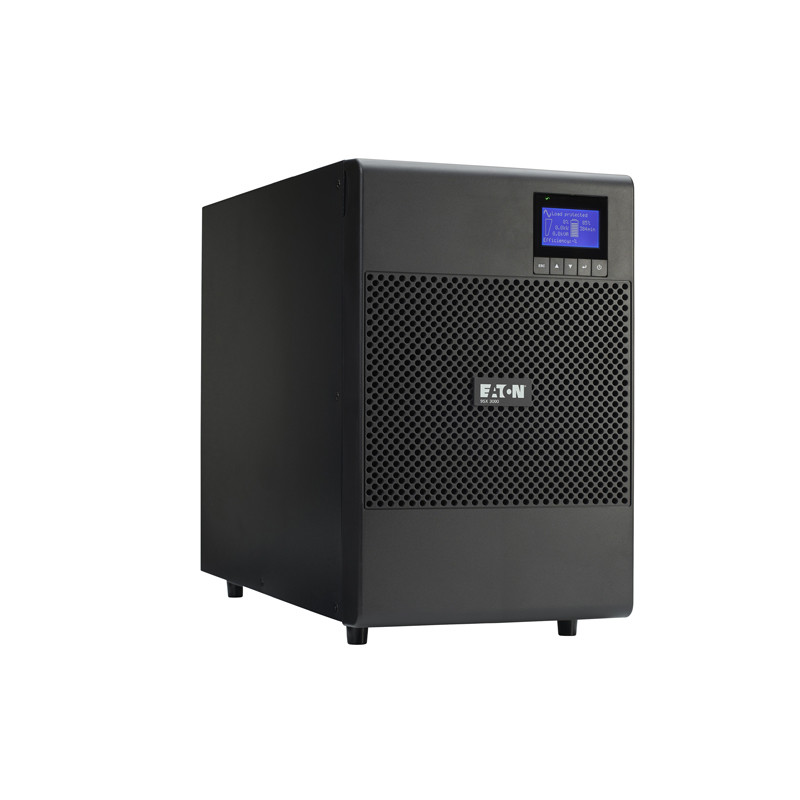

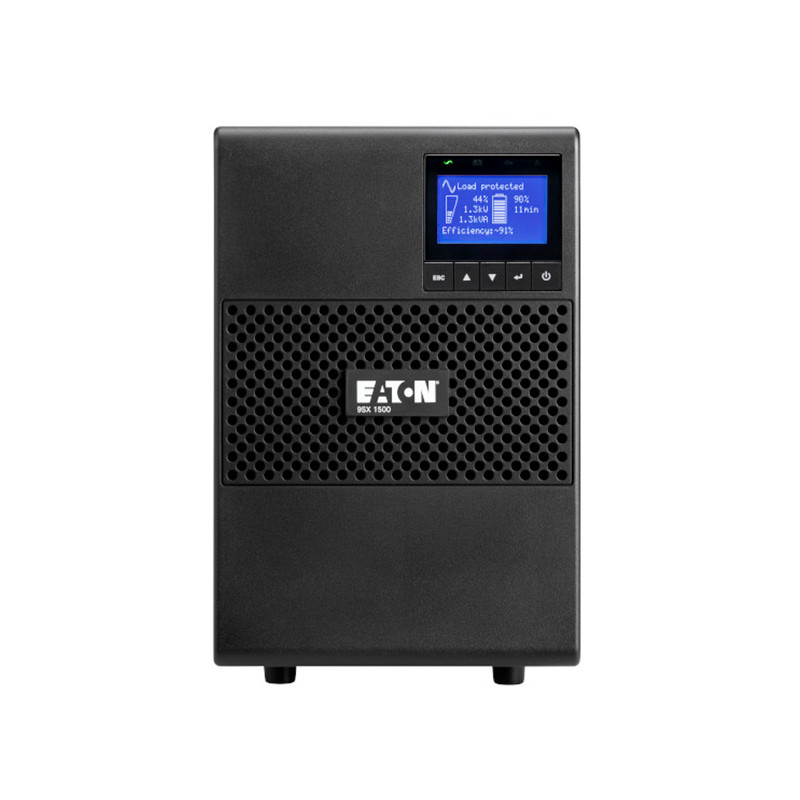

Black Eaton 9SX UPS 700VA 630W Netwerkkaart Optioneel toren UPS 9SX700I
Eaton 9SX UPS 700VA 630W Netwerkkaart Optioneel toren UPS 9SX700I Eaton 9SX (700VA-3kVA) UPS De Eaton 9SX UPS biedt hoge beschikbaarheid, flexibiliteit en geavanceerde bescherming voor infrastructuur, industrie, medische, IT, netwerken, opslag en telecom.Het leveren van on-line bescherming tegen ...
Black Eaton 9SX UPS
,Eaton 9SX UPS 700VA
,9SX700I
Eaton 9SX UPS 700VA 630W Netwerkkaart Optioneel toren UPS 9SX700I
Eaton 9SX (700VA-3kVA) UPS
De Eaton 9SX UPS biedt hoge beschikbaarheid, flexibiliteit en geavanceerde bescherming voor infrastructuur, industrie, medische, IT, netwerken, opslag en telecom.Het leveren van on-line bescherming tegen dubbele omzetting in een handig torenformaat
Specificaties
| UPS-topologie | Dubbele omzetting (online) |
| Uitgangsvermogen | 0.7 kVA |
| Uitgangsvermogen | 630 W |
| Golfvorm | Zuivere sinus |
| Inlaatoperatiespanning (min) | 120 V |
| Inlaatoperatiespanning (max) | 276 V |
| Invoerfrequentie | 40/70 Hz |
| Uitgangsoperatiespanning (min) | 200 V |
| Uitgangsoperatiespanning (max) | 240 V |
| Uitgangsfrequentie | 50/60 Hz |
| Aantal ingangsfasen | 1 |
| Aantal uitvoerfasen | 1 |
| Vermogensfactor | 0.9 |
| ECO-modus | N |
| Geluidsniveau | 40 dB |
| Soorten wisselstroomuitgangen | C13-koppeling |
| Stroomstop | C14-koppeling |
| AC-afvoerpunten | 6 AC-afvoerpunten |
| USB-poort | Y |
| USB 2.0-poorten | 1 |
| Seriële interface | Y |
| RS-232-poorten | 1 |
| Batterijtechnologie | Verzegeld loodzuur (VRLA) |
| Typische back-uptijd bij halve belasting | 14 minuten. |
| Hot-swapbatterij | Y |
| Automatische batterijtest | Y |
| Form factor | Mini toren |
| Kleur van het product | Zwart |
| Afbeelding | LCD |
| Veiligheid | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certificering | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040-2, FCC klasse B, CISPR22 klasse B, CE/CB-rapport (TUV) / cULus / EAC / RCM / BIS / KCC |
| Werktemperatuur (T-T) | 0 - 40 °C |
| Breedte | 160 mm |
| Diepte | 357 mm |
| Hoogte | 252 mm |
| Gewicht | 11.5 kg |
| Beheerkaart inbegrepen | N |
| Gebundelde software | Intelligente Power Software suite |
| Type ingangsverbinding | IEC C14 |
| Nominale uitgangsspanning | 230 V |
| Nominale ingangsspanning | 230 V |
-
