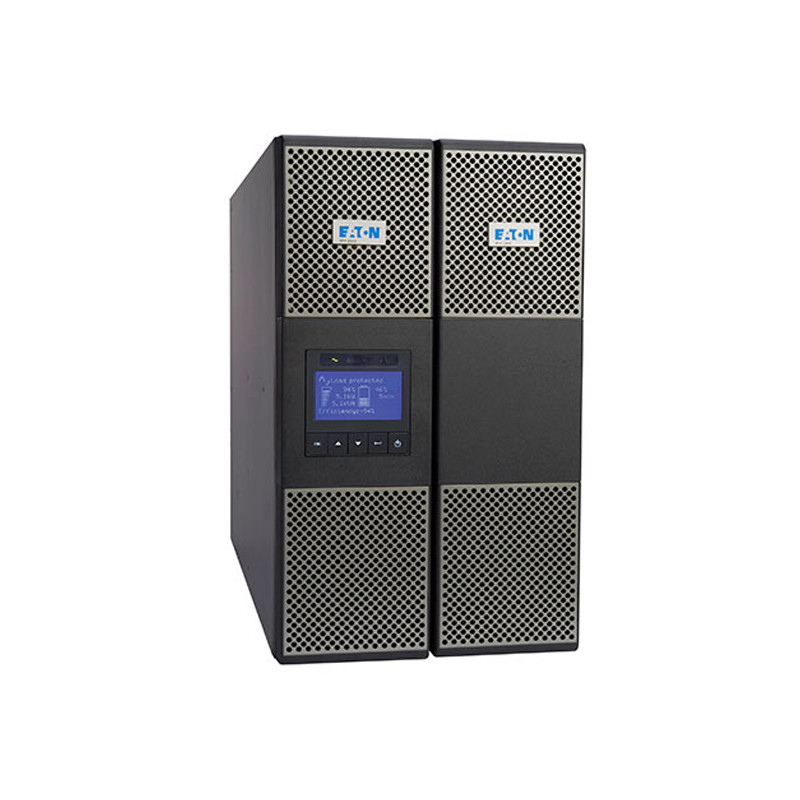

Energiezuinig Eaton 9PX UPS 230V 240V Eaton 9PX2200IRT3U
Eaton 9PX 2200 RT3U UPS 230V De Eaton 9PX UPS biedt energiezuinige energiebescherming voor kleine en middelgrote datacenters, IT-kamers en infrastructuur. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by ...
Eaton 9PX UPS 230V
,Eaton 9PX 2200i RT3U
,Eaton 9PX2200IRT3U
Eaton 9PX 2200 RT3U UPS 230V
De Eaton 9PX UPS biedt energiezuinige energiebescherming voor kleine en middelgrote datacenters, IT-kamers en infrastructuur. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Meer kracht.
De Eaton 9PX (1-3 kVA) is de eerste UPS in zijn klasse die een Unity-vermogensfactor (VA=W) biedt.Het levert 11% meer stroom dan elke andere UPS en voert meer servers met gelijkwaardige VA-classificaties en lagere stroomfactoren.
Energie-efficiënt
De Eaton 9PX biedt de hoogste efficiëntie om de energie- en koelkosten te verlagen.De kWh-waarden kunnen worden gecontroleerd met behulp van de LCD of de Intelligent Power Software van Eaton.
Technische gegevens
Algemene specificaties |
|
|---|---|
| Productnaam | Eaton 9PX UPS |
| Catalogusnummer | 9PX2200IRT3U |
| Modelcode | Eaton 9PX 2200i RT3U |
| UPC | 743172081377 |
| Productlengte/diepte | 48.5 cm |
| Producthoogte | 13 cm |
| Productbreedte | 44 cm |
| Gewicht van het product | 24.52 kg |
| Garantie | Drie jaar elektronica, twee jaar batterij. |
| Naleving | CE-markering TUV cULus Op de lijst CSA 22.2 FCC deel 15 klasse B CISPR22 klasse B |
| Certificeringen | cULus Op de lijst EAC CE ENERGY STAR-gecertificeerd IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 |
| Modelcode | Eaton 9PX 2200i RT3U |
GESPECIFICATIEEN van het product |
|
|---|---|
| Secundaire frequentie max | 60 Hz |
| Uitgangsgolfvorm | Sinusgolf |
| Maximaal aantal batterijpakketten | 4 |
| Wattage | 2200 W |
| Uitgangsvermogenfactor | 1 |
| Form factor | Rack/toren |
| Vervorming van de spanningsuitgang (lineaire belasting) | 3 |
| Inclusief netwerkkaart | - Nee, niet echt. |
| Invoerverbinding | |
| Inlaatspanning min | 100 V |
| Uitgangsspanning ?? max | 240 V |
| Secundaire frequentie min | 50 Hz |
| Softwarecompatibiliteit | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Vervanging van de batterij | warmwisselbare interne batterijen en uitgebreide batterijmodules (EBM's) |
| Type batterij | Verzegeld, met loodzuur |
| Efficiëntie | 93.5 |
| Bijzondere kenmerken | Dubbele omrekenings-topologie, die de stroomomstandigheden voortdurend controleert en de spanning en frequentie regelt. provides the highest efficiency level to reduce energy and cooling costs|Internal bypass allows service continuity in case of UPS fault|Next-generation graphical LCD display|Compatible with Virtual environments (VMwareHyper-V, Citrix Xen, Redhat)|Meter energy consumption (down to the managed outlet groups)|Hot swappable batteries|Advanced Battery Management (ABM) technology to increase battery lifetime|Long backup time with up to 4 optional EBM |
| Type constructie | 482.6 mm (19 inch) apparaat |
| Uitgangsspanning ¢ min | 200 V |
| Kleur | Zwart/zilver |
| Uitgebreide batterijcapaciteit | - Ja, dat klopt. |
| Uitgangsspanningsgebied | 200/208/220/230/240 V +/- 1% |
| Topologie | Online/dubbele omzetting |
| BTU-classificatie | Online: 488 |
| Efficiëntie (eco-modus) | 98 |
| Back-uptijd | Drie minuten. |
| Nominale ingangsspanning | 230V standaard (200/208/220/230/240V) |
| Invoervermogenfactor | >.99 |
| Invoerfrequentiebereik | 40-70 Hz |
-
